Seamless Rolled Rings

Ring rolling forging is a specialised process used to manufacture seamless rolled rings using advanced ring rolling mill.

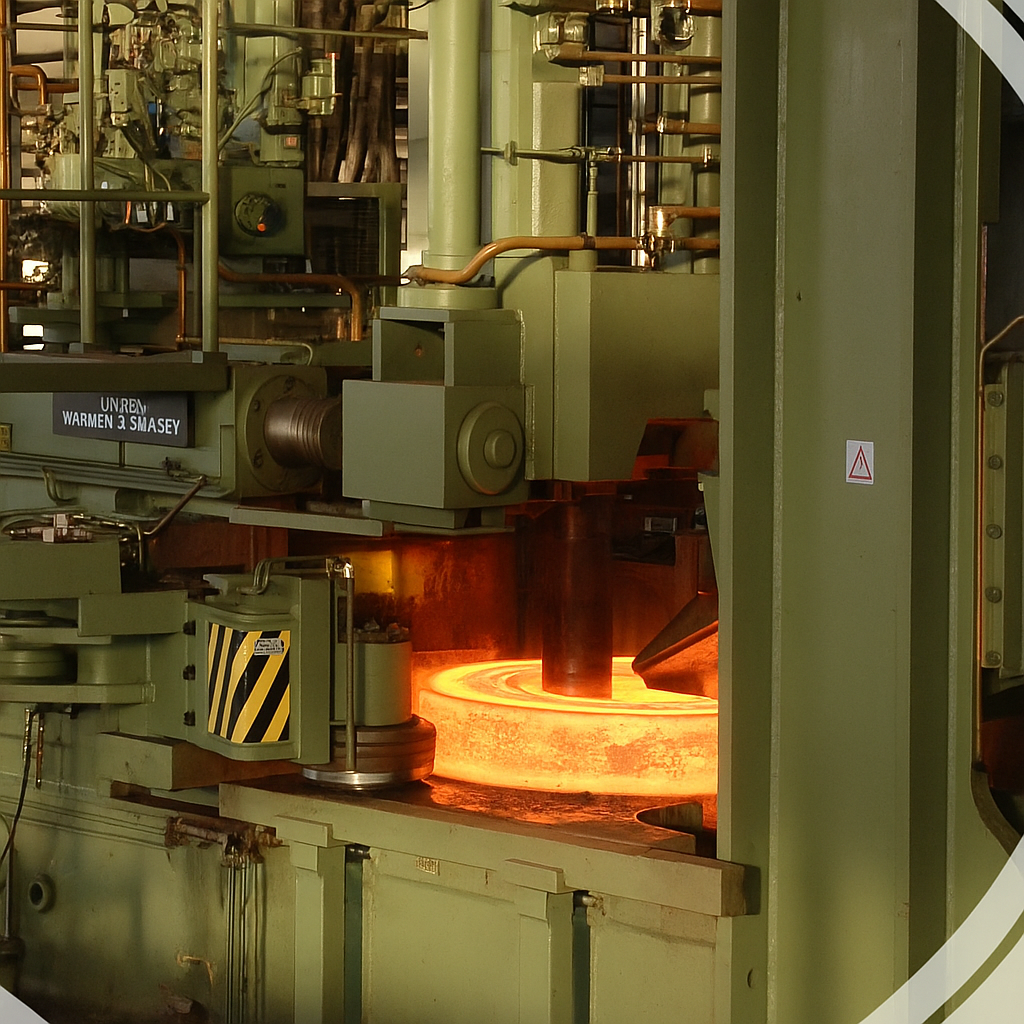

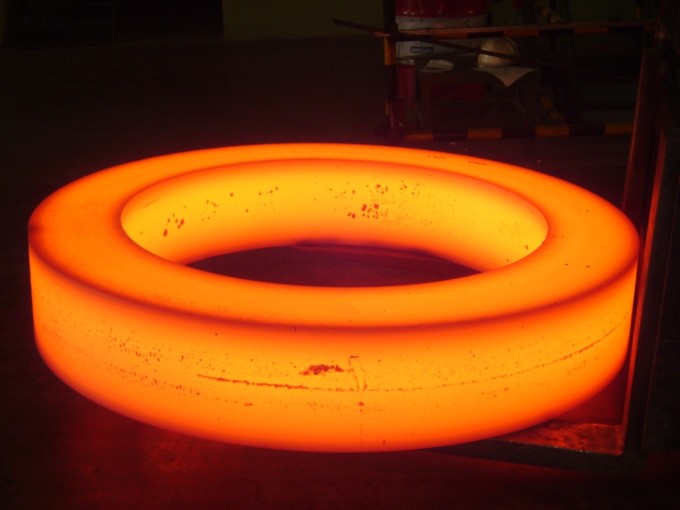

At CHW Forge, precision steel rolled rings are produced to close tolerances, ensuring minimal material and energy wastage. The seamless ring rolling process begins with an automatic 4000 MT hydraulic press, which forms a hollow “donut” from a heated billet. This donut is reheated above the recrystallization temperature and positioned over an idler or mandrel roll. The idler roll then applies controlled pressure toward a drive roll that rotates continuously, reducing the wall thickness and simultaneously increasing both the inner and outer diameters of the ring.

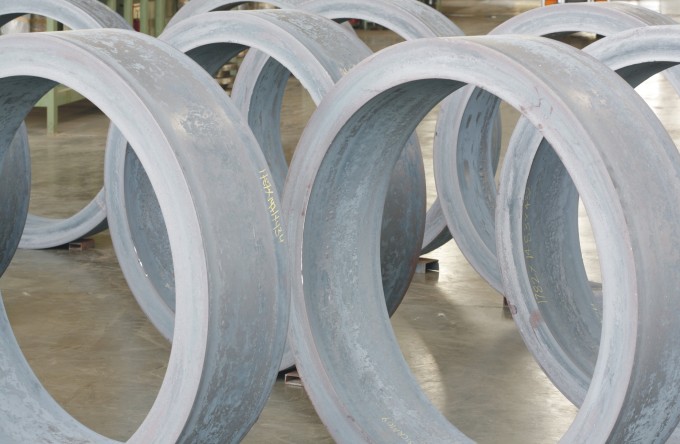

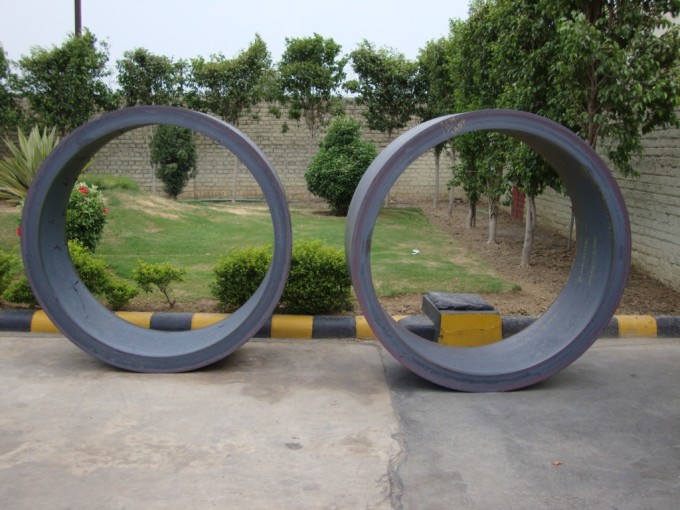

The seamless ring rolled forging process results in superior-quality rings that are in high demand across various industries. These rings can be manufactured in multiple configurations—from flat, washer-like shapes to tall, cylindrical forms. CHW Forge also produces complex, custom-designed seamless rolled rings with contours on both the outer and inner diameters. Compared to fabricated rings made from steel plates or cast components, seamless rolled ring forgings offer a more cost-effective and structurally sound alternative.

CHW Forge manufactures rolled rings. With extensive capabilities and flexible production systems, we can supply rings in the diameter, height, and weight required for your application.

If you require high-quality ring rolled forgings that set industry benchmarks, CHW Forge is your trusted partner. Our work spans multiple industries, and our commitment to excellence is reflected in our national and international client base.
